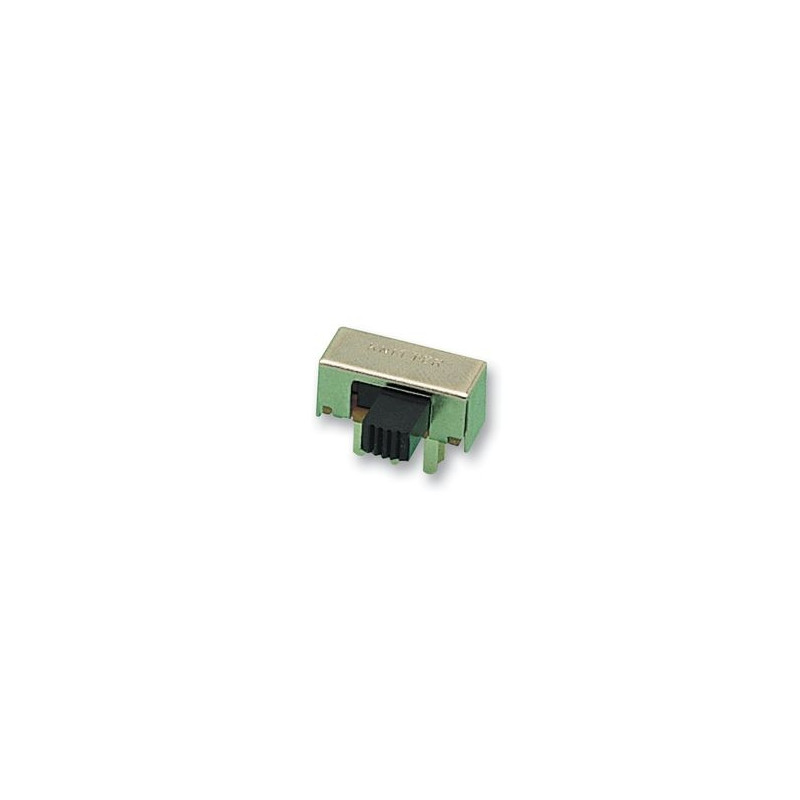

Slide switch ON-ON DPDT
Slide switch 2 position ON/ON
6 broches a souder
Vendu a l'unité
Catégories
Slide switch 2 position ON/ON
6 broches a souder
Vendu a l'unité
Type | DPDT |
Contact Type | 2 Positions, On/On |
Terminal Quantity | 6 |
Working Power | 0.5A 50V DC |
Contact Resistance | 30mΩ Max |
Insulation Resistance | 100mΩ Min at 500V DC |
Withstand Voltage | AC 500V for 1 min |
Pin Size |
5.5 x 0.5mm / 0.22" x 0.02" ( L * W) |
Pin Pitch | 3.3mm/ 0.13" |
Main Body Size(Not Include Pins) | 14 x 6.5 x 7mm / 0.55" x 0.26" x 0.27"(L*W*H) |
Switch Total Size | 14 x 12 x 13.3mm / 0.55" x 0.47" x 0.52" (L*W*H) |
Knob Size | 5 x 4 x 7mm / 0.2" x 0.16" x 0.27" (L*W*H) |
