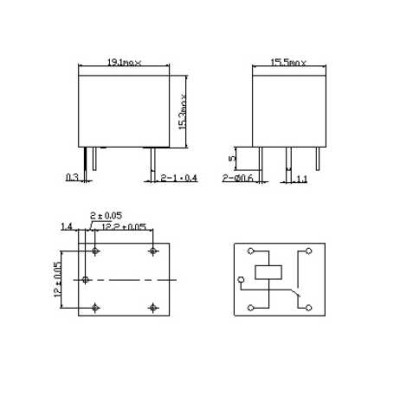

Relais 12v SRD-12VDC-SL-A , 4 Broches
idéal pour developpement projet electronique ou pour utiliser avec Arduino ou Raspberry, etc
Voir datasheet
Catégories
Voir datasheet
Coil voltage: DC-12V
Coil resistance: 70-80Ω
Contact resistance: 100Ω Max
Operation time: 10msec Max
Release time: 5 msec Max
Ambient temperature:-25℃ to 70℃
Operating humidity:45 to 85%RH
Starting current:
Operating current: 43-46mA
Release current: 15-18mA
Insulation resistance: ≥100m (ohm)
Dielectric strength:
Between Coil & contacts: 1500VAC 50-60HZ/min
Between contacts: 1000VAC 50-60HZ/min
Life expectancy:
Mechanically: 10,000,000
Electrically: 100,000
Rated load:: 10A 250V~10A 30VDC / 10A 125VAC~10A28VDC

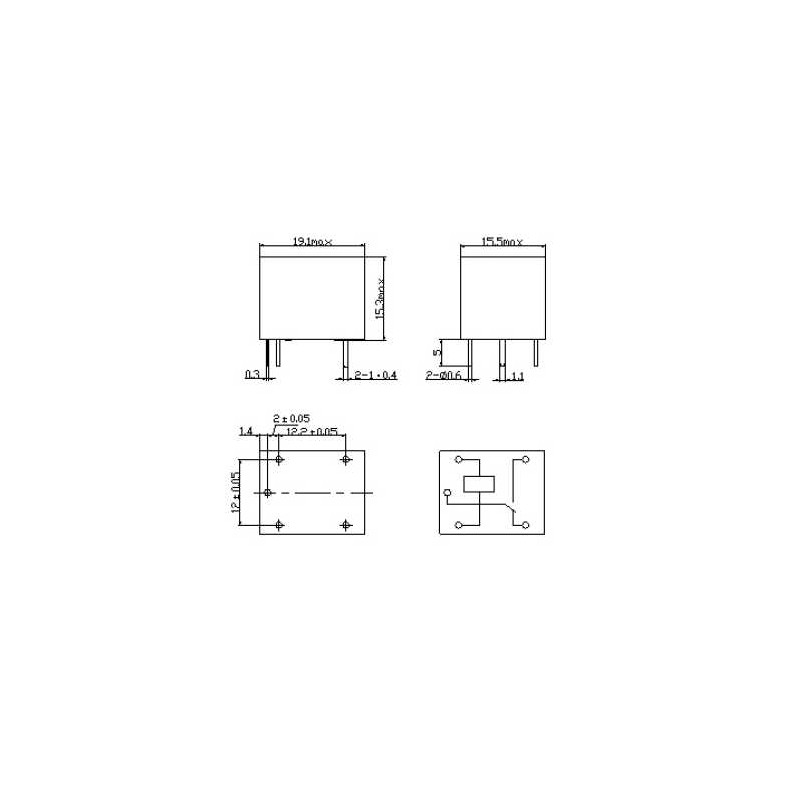

Size: Approx. 1.8 x 1.5 x 1.6cm (L*W*H)
