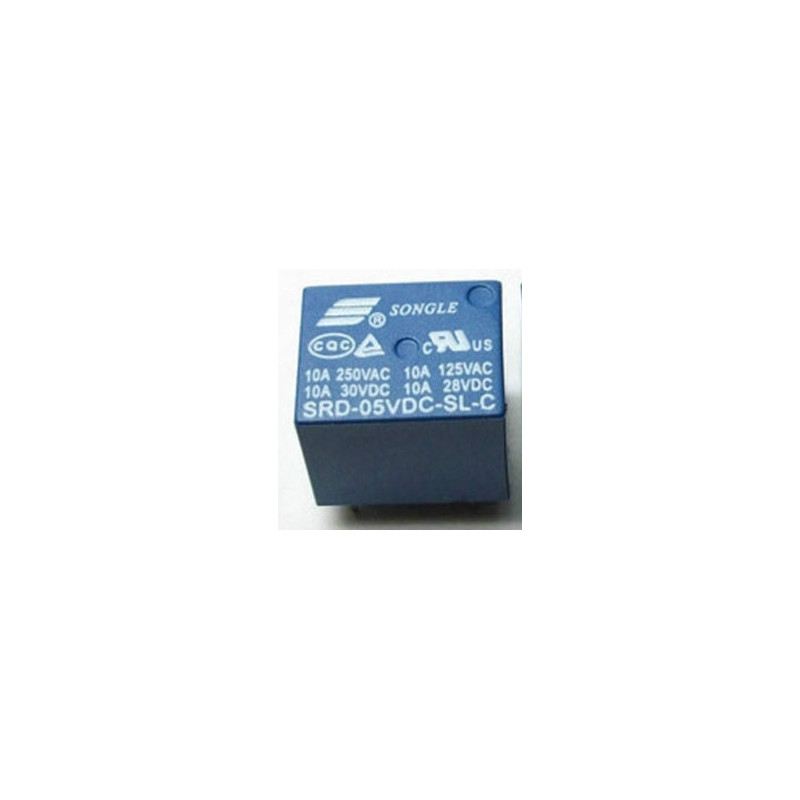

Relais 5v SRD-5VDC-SL-C Agrandir

Relais 5v SRD-5VDC-SL-C

Relais commandé par 5v
Charge:10A 250V
idéal pour developpement projet electronique ou pour utiliser avec Arduino ou Raspberry

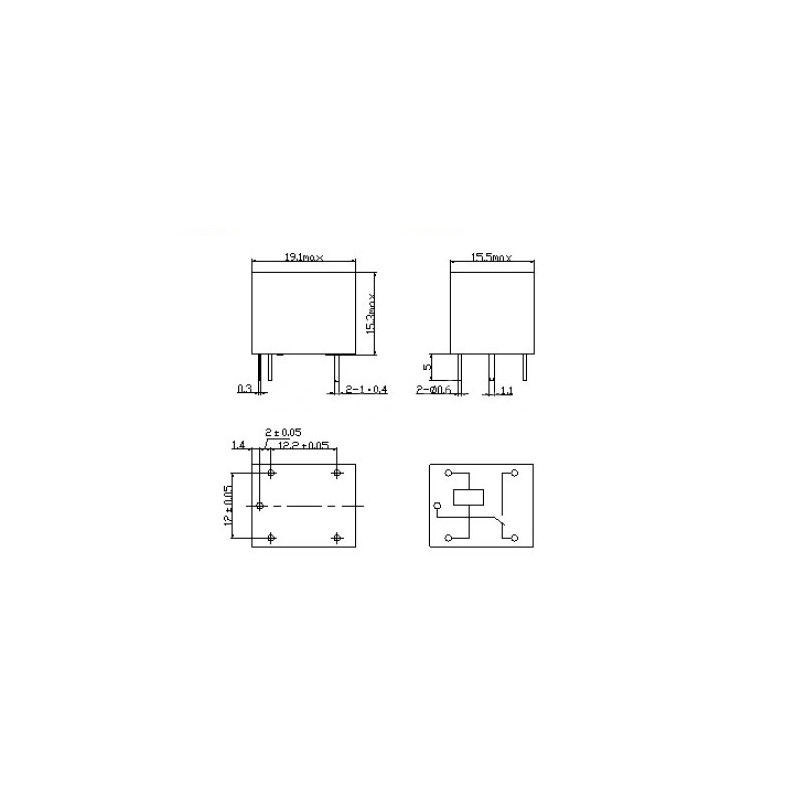

Voir 2éme photo pour le branchement et dimensions.
Voir datasheet

Plus de détails

REL-644-TIR1-B

78 pièces disponibles

4,50 €

30 autres produits dans la même catégorie

Précédent
Suivant

Les clients qui ont acheté ce produit ont également acheté...

Coil voltage: DC-5V
Coil resistance: 70-80Ω
Contact resistance: 100Ω Max
Operation time: 10msec Max
Release time: 5 msec Max
Ambient temperature:-25℃ to 70℃
Operating humidity:45 to 85%RH
Starting current:
Operating current: 43-46mA
Release current: 15-18mA
Insulation resistance: ≥100m (ohm)
Dielectric strength:
Between Coil & contacts: 1500VAC 50-60HZ/min
Between contacts: 1000VAC 50-60HZ/min
Life expectancy:
Mechanically: 10,000,000
Electrically: 100,000
Rated load:: 10A 250V~10A 30VDC  /  10A 125VAC~10A28VDC
Size: Approx. 1.8 x 1.5 x 1.6cm (L*W*H)
